hElementElementElement functions can be customized with set and show rules.
set and show rules.Inserts horizontal spacing into a paragraph.
The spacing can be absolute, relative, or fractional. In the last case, the remaining space on the line is distributed among all fractional spacings according to their relative fractions.
Example
First #h(1cm) Second \
First #h(30%) Second
Fractional spacing
With fractional spacing, you can align things within a line without forcing
a paragraph break (like align would). Each fractionally sized element
gets space based on the ratio of its fraction to the sum of all fractions.

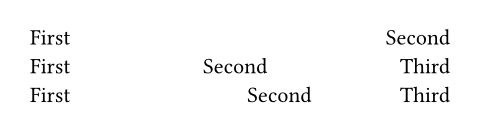

First #h(1fr) Second \
First #h(1fr) Second #h(1fr) Third \
First #h(2fr) Second #h(1fr) Third
Mathematical Spacing
In mathematical formulas, you can additionally use these
constants to add spacing between elements: thin (1/6 em), med (2/9 em),
thick (5/18 em), quad (1 em), wide (2 em).
ParameterParameterParameters are input values for functions. Specify them in parentheses after the function name.
amount
How much spacing to insert.
weakSettableSettableSettable parameters can be set using the set rule, changing the default value used thereafter.
set rule, changing the default value used thereafter.If true, the spacing collapses at the start or end of a paragraph.
Moreover, from multiple adjacent weak spacings all but the largest one
collapse.
Weak spacing in markup also causes all adjacent markup spaces to be
removed, regardless of the amount of spacing inserted. To force a space
next to weak spacing, you can explicitly write #" " (for a normal
space) or ~ (for a non-breaking space). The latter can be useful to
create a construct that always attaches to the preceding word with one
non-breaking space, independently of whether a markup space existed in
front or not.
Default value: false
Show example

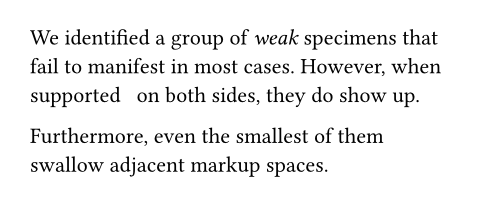

#h(1cm, weak: true)
We identified a group of _weak_
specimens that fail to manifest
in most cases. However, when
#h(8pt, weak: true) supported
#h(8pt, weak: true) on both sides,
they do show up.
Further #h(0pt, weak: true) more,
even the smallest of them swallow
adjacent markup spaces.
