length
A size or distance, possibly expressed with contextual units.
Typst supports the following length units:
- Points:
72pt - Millimeters:
254mm - Centimeters:
2.54cm - Inches:
1in - Relative to font size:
2.5em
You can multiply lengths with and divide them by integers and floats.
Example

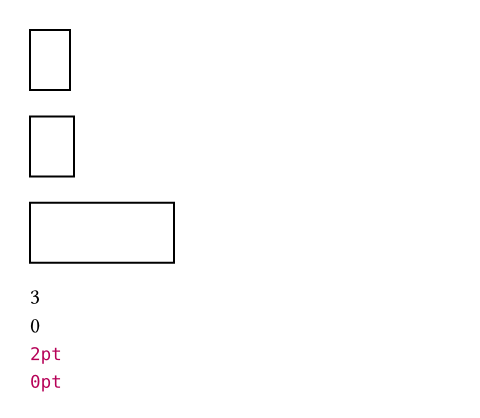

#rect(width: 20pt)
#rect(width: 2em)
#rect(width: 1in)
#(3em + 5pt).em \
#(20pt).em \
#(40em + 2pt).abs \
#(5em).abs
Fields
abs: A length with just the absolute component of the current length (that is, excluding theemcomponent).em: The amount ofemunits in this length, as a float.
DefinitionDefinitionThese functions and types can have related definitions. To access a definition, specify the name of the function or type, followed by the definition name separated by a period.
pt
Converts this length to points.
Fails with an error if this length has non-zero em units (such as
5em + 2pt instead of just 2pt). Use the abs field (such as in
(5em + 2pt).abs.pt()) to ignore the em component of the length (thus
converting only its absolute component).
mm
Converts this length to millimeters.
Fails with an error if this length has non-zero em units. See the
pt method for more details.
cm
Converts this length to centimeters.
Fails with an error if this length has non-zero em units. See the
pt method for more details.
inches
Converts this length to inches.
Fails with an error if this length has non-zero em units. See the
pt method for more details.
to-absolute
Resolve this length to an absolute length.
Show example

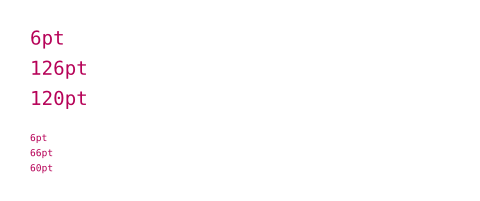

#set text(size: 12pt)
#context [
#(6pt).to-absolute() \
#(6pt + 10em).to-absolute() \
#(10em).to-absolute()
]
#set text(size: 6pt)
#context [
#(6pt).to-absolute() \
#(6pt + 10em).to-absolute() \
#(10em).to-absolute()
]
