vElementElementElement functions can be customized with set and show rules.
Element
Element functions can be customized with
set and show rules.Inserts vertical spacing into a flow of blocks.
The spacing can be absolute, relative, or fractional. In the last case, the remaining space on the page is distributed among all fractional spacings according to their relative fractions.

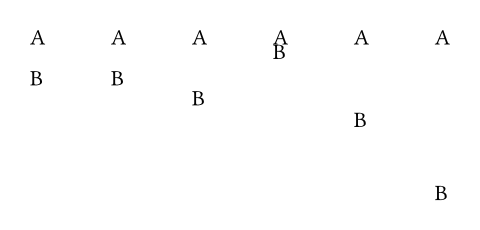

Example
#grid(
rows: 3cm,
columns: 6,
gutter: 1fr,
[A #parbreak() B],
[A #v(0pt) B],
[A #v(10pt) B],
[A #v(0pt, weak: true) B],
[A #v(40%, weak: true) B],
[A #v(1fr) B],
)
ParameterParameterParameters are input values for functions. Specify them in parentheses after the function name.
Parameter
Parameters are input values for functions. Specify them in parentheses after the function name.
amount
How much spacing to insert.
weakSettableSettableSettable parameters can be set using the set rule, changing the default value used thereafter.
Settable
Settable
Settable parameters can be set using the
set rule, changing the default value used thereafter.If true, the spacing collapses at the start or end of a flow.
Moreover, from multiple adjacent weak spacings all but the largest one
collapse. Weak spacings will always collapse adjacent paragraph spacing,
even if the paragraph spacing is larger.
Default value: false
Show example
The following theorem is
foundational to the field:
#v(4pt, weak: true)
$ x^2 + y^2 = r^2 $
#v(4pt, weak: true)
The proof is simple:
