raw

Element

Element

Element functions can be customized with set and show rules.

Raw text with optional syntax highlighting.

Displays the text verbatim and in a monospace font. This is typically used to embed computer code into your document.

Note that text given to this element cannot contain arbitrary formatting, such as *strong* or _emphasis_, as it is displayed verbatim. If you'd like to display any kind of content with a monospace font, instead of using raw, you should change its font to a monospace font using the text function.

Example

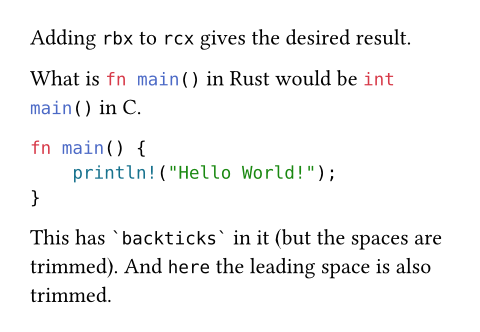

Adding `rbx` to `rcx` gives
the desired result.

What is ```rust fn main()``` in Rust
would be ```c int main()``` in C.

```rust
fn main() {
    println!("Hello World!");
}
```

This has ``` `backticks` ``` in it
(but the spaces are trimmed). And
``` here``` the leading space is
also trimmed.

You can also construct a raw element programmatically from a string (and provide the language tag via the optional lang argument).

#raw("fn " + "main() {}", lang: "rust")

Syntax

This function also has dedicated syntax. You can enclose text in 1 or 3+ backticks (`) to make it raw. Two backticks produce empty raw text. This works both in markup and code.

When you use three or more backticks, you can additionally specify a language tag for syntax highlighting directly after the opening backticks. Within raw blocks, everything (except for the language tag, if applicable) is rendered as is, in particular, there are no escape sequences.

The language tag is an identifier that directly follows the opening backticks only if there are three or more backticks. If your text starts with something that looks like an identifier, but no syntax highlighting is needed, start the text with a single space (which will be trimmed) or use the single backtick syntax. If your text should start or end with a backtick, put a space before or after it (it will be trimmed).

If no syntax highlighting is available by default for your specified language tag (or if you want to override the built-in definition), you may provide a custom syntax specification file to the syntaxes field.

Styling

By default, the raw element uses the DejaVu Sans Mono font (included with Typst), with a smaller font size of 0.8em (that is, 80% of the global font size). This is because monospace fonts tend to be visually larger than non-monospace fonts.

You can customize these properties with show-set rules:

// Switch to Cascadia Code for both
// inline and block raw.
#show raw: set text(font: "Cascadia Code")

// Reset raw blocks to the same size as normal text,
// but keep inline raw at the reduced size.
#show raw.where(block: true): set text(1em / 0.8)

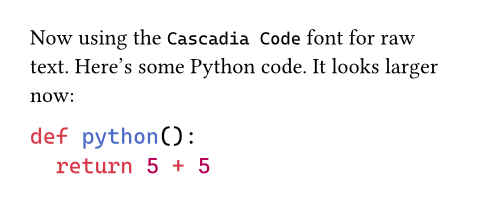

Now using the `Cascadia Code` font for raw text.
Here's some Python code. It looks larger now:

```py
def python():
  return 5 + 5
```

In addition, you can customize the syntax highlighting colors by setting a custom theme through the theme field.

For complete customization of the appearance of a raw block, a show rule on raw.line could be helpful, such as to add line numbers.

Note that, in raw text, typesetting features like hyphenation, overhang, CJK-Latin spacing (and justification for raw blocks) will be disabled by default.
