color
A color in a specific color space.
Typst supports:
- sRGB through the
rgbfunction - Device CMYK through the
cmykfunction - D65 Gray through the
lumafunction - Oklab through the
oklabfunction - Oklch through the
oklchfunction - Linear RGB through the
color.linear-rgbfunction - HSL through the
color.hslfunction - HSV through the
color.hsvfunction
Example
#rect(fill: aqua)
Predefined colors

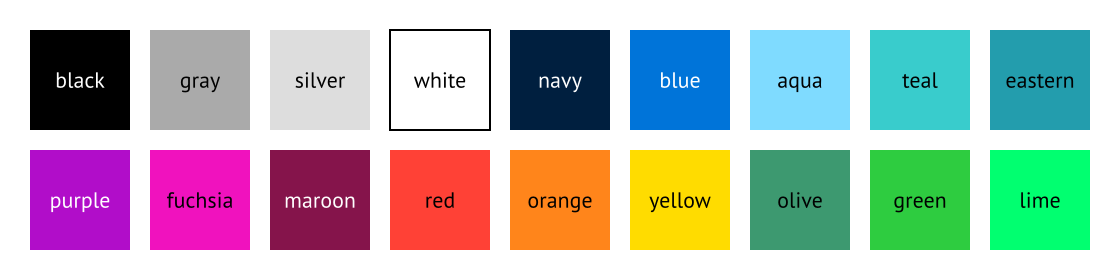

Typst defines the following built-in colors:
| Color | Definition |
|---|---|
black | luma(0) |
gray | luma(170) |
silver | luma(221) |
white | luma(255) |
navy | rgb("#001f3f") |
blue | rgb("#0074d9") |
aqua | rgb("#7fdbff") |
teal | rgb("#39cccc") |
eastern | rgb("#239dad") |
purple | rgb("#b10dc9") |
fuchsia | rgb("#f012be") |
maroon | rgb("#85144b") |
red | rgb("#ff4136") |
orange | rgb("#ff851b") |
yellow | rgb("#ffdc00") |
olive | rgb("#3d9970") |
green | rgb("#2ecc40") |
lime | rgb("#01ff70") |
The predefined colors and the most important color constructors are
available globally and also in the color type's scope, so you can write
either color.red or just red.

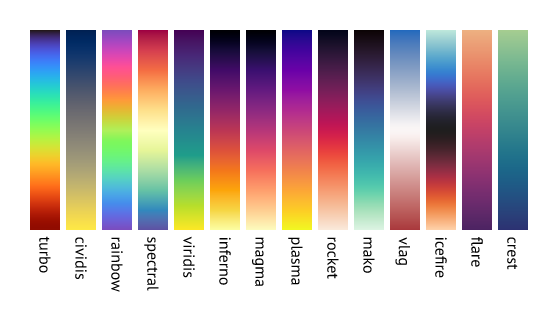

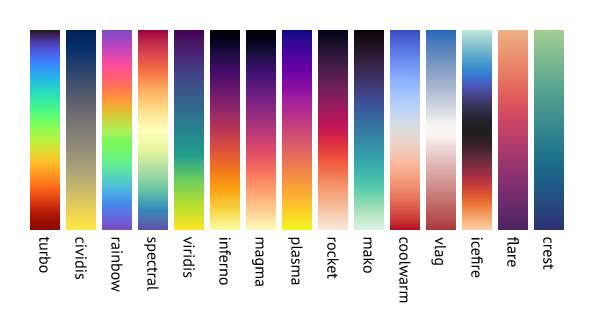

Predefined color maps
Typst also includes a number of preset color maps that can be used for
gradients. These are simply arrays of colors defined in
the module color.map.

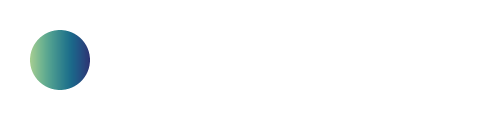

#circle(fill: gradient.linear(..color.map.crest))
| Map | Details |
|---|---|
turbo | A perceptually uniform rainbow-like color map. Read this blog post for more details. |
cividis | A blue to gray to yellow color map. See this blog post for more details. |
rainbow | Cycles through the full color spectrum. This color map is best used by setting the interpolation color space to HSL. The rainbow gradient is not suitable for data visualization because it is not perceptually uniform, so the differences between values become unclear to your readers. It should only be used for decorative purposes. |
spectral | Red to yellow to blue color map. |
viridis | A purple to teal to yellow color map. |
inferno | A black to red to yellow color map. |
magma | A black to purple to yellow color map. |
plasma | A purple to pink to yellow color map. |
rocket | A black to red to white color map. |
mako | A black to teal to white color map. |
vlag | A light blue to white to red color map. |
icefire | A light teal to black to orange color map. |
flare | A orange to purple color map that is perceptually uniform. |
crest | A light green to blue color map. |
Some popular presets are not included because they are not available under a free licence. Others, like Jet, are not included because they are not color blind friendly. Feel free to use or create a package with other presets that are useful to you!
DefinitionDefinitionThese functions and types can have related definitions. To access a definition, specify the name of the function or type, followed by the definition name separated by a period.
luma
Create a grayscale color.
A grayscale color is represented internally by a single lightness
component.
These components are also available using the
components method.
Show example
#for x in range(250, step: 50) {
box(square(fill: luma(x)))
}
lightness
The lightness component.
alphaRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
The alpha component.
colorRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
Alternatively: The color to convert to grayscale.
If this is given, the lightness should not be given.
oklab
Create an Oklab color.
This color space is well suited for the following use cases:
- Color manipulation such as saturating while keeping perceived hue
- Creating grayscale images with uniform perceived lightness
- Creating smooth and uniform color transition and gradients
A linear Oklab color is represented internally by an array of four components:
- lightness (
ratio) - a (
floatorratio. Ratios are relative to0.4; meaning50%is equal to0.2) - b (
floatorratio. Ratios are relative to0.4; meaning50%is equal to0.2) - alpha (
ratio)
These components are also available using the
components method.
Show example
#square(
fill: oklab(27%, 20%, -3%, 50%)
)
lightnessRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
The lightness component.
a
The a ("green/red") component.
b
The b ("blue/yellow") component.
alphaRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
The alpha component.
colorRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
Alternatively: The color to convert to Oklab.
If this is given, the individual components should not be given.
oklch
Create an Oklch color.
This color space is well suited for the following use cases:
- Color manipulation involving lightness, chroma, and hue
- Creating grayscale images with uniform perceived lightness
- Creating smooth and uniform color transition and gradients
A linear Oklch color is represented internally by an array of four components:
- lightness (
ratio) - chroma (
floatorratio. Ratios are relative to0.4; meaning50%is equal to0.2) - hue (
angle) - alpha (
ratio)
These components are also available using the
components method.
Show example
#square(
fill: oklch(40%, 0.2, 160deg, 50%)
)
lightnessRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
The lightness component.
chroma
The chroma component.
hueRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
The hue component.
alphaRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
The alpha component.
colorRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
Alternatively: The color to convert to Oklch.
If this is given, the individual components should not be given.
linear-rgb
Create an RGB(A) color with linear luma.
This color space is similar to sRGB, but with the distinction that the
color component are not gamma corrected. This makes it easier to perform
color operations such as blending and interpolation. Although, you
should prefer to use the oklab function for these.
A linear RGB(A) color is represented internally by an array of four components:
These components are also available using the
components method.
Show example
#square(fill: color.linear-rgb(
30%, 50%, 10%,
))
red
The red component.
green
The green component.
blue
The blue component.
alpha
The alpha component.
colorRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
Alternatively: The color to convert to linear RGB(A).
If this is given, the individual components should not be given.
rgb
Create an RGB(A) color.
The color is specified in the sRGB color space.
An RGB(A) color is represented internally by an array of four components:
These components are also available using the components
method.
Show example

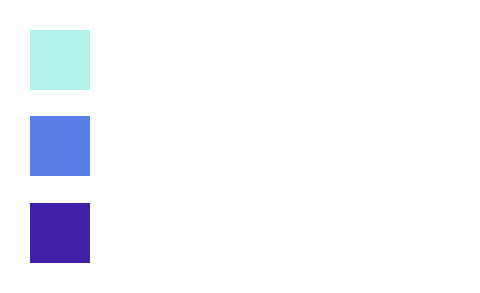

#square(fill: rgb("#b1f2eb"))
#square(fill: rgb(87, 127, 230))
#square(fill: rgb(25%, 13%, 65%))
red
The red component.
green
The green component.
blue
The blue component.
alpha
The alpha component.
hexRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
Alternatively: The color in hexadecimal notation.
Accepts three, four, six or eight hexadecimal digits and optionally a leading hash.
If this is given, the individual components should not be given.
Show example
#text(16pt, rgb("#239dad"))[
*Typst*
]
colorRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
Alternatively: The color to convert to RGB(a).
If this is given, the individual components should not be given.
cmyk
Create a CMYK color.
This is useful if you want to target a specific printer. The conversion to RGB for display preview might differ from how your printer reproduces the color.
A CMYK color is represented internally by an array of four components:
These components are also available using the
components method.
Note that CMYK colors are not currently supported when PDF/A output is enabled.
Show example
#square(
fill: cmyk(27%, 0%, 3%, 5%)
)
cyanRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
The cyan component.
magentaRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
The magenta component.
yellowRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
The yellow component.
keyRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
The key component.
colorRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
Alternatively: The color to convert to CMYK.
If this is given, the individual components should not be given.
hsl
Create an HSL color.
This color space is useful for specifying colors by hue, saturation and lightness. It is also useful for color manipulation, such as saturating while keeping perceived hue.
An HSL color is represented internally by an array of four components:
These components are also available using the
components method.
Show example
#square(
fill: color.hsl(30deg, 50%, 60%)
)
hueRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
The hue angle.
saturation
The saturation component.
lightness
The lightness component.
alpha
The alpha component.
colorRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
Alternatively: The color to convert to HSL.
If this is given, the individual components should not be given.
hsv
Create an HSV color.
This color space is useful for specifying colors by hue, saturation and value. It is also useful for color manipulation, such as saturating while keeping perceived hue.
An HSV color is represented internally by an array of four components:
These components are also available using the
components method.
Show example
#square(
fill: color.hsv(30deg, 50%, 60%)
)
hueRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
The hue angle.
saturation
The saturation component.
value
The value component.
alpha
The alpha component.
colorRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
Alternatively: The color to convert to HSL.
If this is given, the individual components should not be given.
components
Extracts the components of this color.
The size and values of this array depends on the color space. You can
obtain the color space using space. Below is a table
of the color spaces and their components:
| Color space | C1 | C2 | C3 | C4 |
|---|---|---|---|---|
luma | Lightness | |||
oklab | Lightness | a | b | Alpha |
oklch | Lightness | Chroma | Hue | Alpha |
linear-rgb | Red | Green | Blue | Alpha |
rgb | Red | Green | Blue | Alpha |
cmyk | Cyan | Magenta | Yellow | Key |
hsl | Hue | Saturation | Lightness | Alpha |
hsv | Hue | Saturation | Value | Alpha |
For the meaning and type of each individual value, see the documentation
of the corresponding color space. The alpha component is optional and
only included if the alpha argument is true. The length of the
returned array depends on the number of components and whether the alpha
component is included.
Show example
// note that the alpha component is included by default
#rgb(40%, 60%, 80%).components()
space
Returns the constructor function for this color's space.
Returns one of:
Show example
#let color = cmyk(1%, 2%, 3%, 4%)
#(color.space() == cmyk)
to-hex
Returns the color's RGB(A) hex representation (such as #ffaa32 or
#020304fe). The alpha component (last two digits in #020304fe) is
omitted if it is equal to ff (255 / 100%).
lighten
Lightens a color by a given factor.
factorRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
The factor to lighten the color by.
darken
Darkens a color by a given factor.
factorRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
The factor to darken the color by.
saturate
Increases the saturation of a color by a given factor.
factorRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
The factor to saturate the color by.
desaturate
Decreases the saturation of a color by a given factor.
factorRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
The factor to desaturate the color by.
negate
Produces the complementary color using a provided color space. You can think of it as the opposite side on a color wheel.
Show example
#square(fill: yellow)
#square(fill: yellow.negate())
#square(fill: yellow.negate(space: rgb))
spaceany
The color space used for the transformation. By default, a perceptual color space is used.
Default value: oklab
rotate
Rotates the hue of the color by a given angle.
angleRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
The angle to rotate the hue by.
spaceany
The color space used to rotate. By default, this happens in a perceptual
color space (oklch).
Default value: oklch
mix
Create a color by mixing two or more colors.
In color spaces with a hue component (hsl, hsv, oklch), only two colors can be mixed at once. Mixing more than two colors in such a space will result in an error!

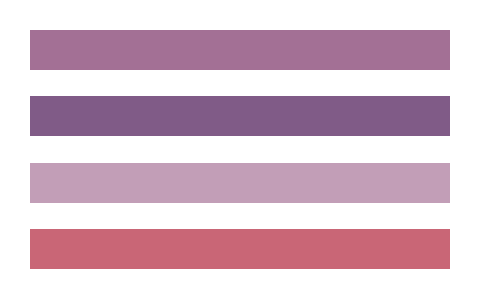

Show example
#set block(height: 20pt, width: 100%)
#block(fill: red.mix(blue))
#block(fill: red.mix(blue, space: rgb))
#block(fill: color.mix(red, blue, white))
#block(fill: color.mix((red, 70%), (blue, 30%)))
colors
The colors, optionally with weights, specified as a pair (array of length two) of color and weight (float or ratio).
The weights do not need to add to 100%, they are relative to the
sum of all weights.
spaceany
The color space to mix in. By default, this happens in a perceptual
color space (oklab).
Default value: oklab
transparentize
Makes a color more transparent by a given factor.
This method is relative to the existing alpha value.
If the scale is positive, calculates alpha - alpha * scale.
Negative scales behave like color.opacify(-scale).

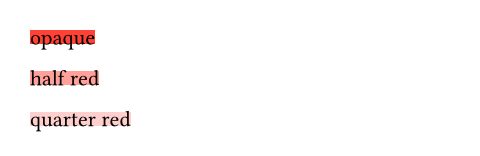

Show example
#block(fill: red)[opaque]
#block(fill: red.transparentize(50%))[half red]
#block(fill: red.transparentize(75%))[quarter red]
scaleRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
The factor to change the alpha value by.
opacify
Makes a color more opaque by a given scale.
This method is relative to the existing alpha value.
If the scale is positive, calculates alpha + scale - alpha * scale.
Negative scales behave like color.transparentize(-scale).

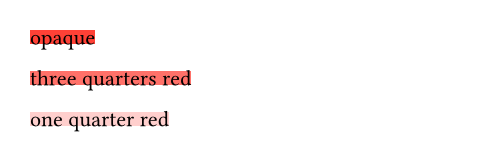

Show example
#let half-red = red.transparentize(50%)
#block(fill: half-red.opacify(100%))[opaque]
#block(fill: half-red.opacify(50%))[three quarters red]
#block(fill: half-red.opacify(-50%))[one quarter red]
scaleRequiredRequiredRequired parameters must be specified when calling the function.PositionalPositionalPositional parameters can be set by specifying them in order, omitting the parameter name.
The scale to change the alpha value by.
