imageElementElementElement functions can be customized with set and show rules.
set and show rules.A raster or vector graphic.
You can wrap the image in a figure to give it a number and caption.
Like most elements, images are block-level by default and thus do not
integrate themselves into adjacent paragraphs. To force an image to become
inline, put it into a box.
Example

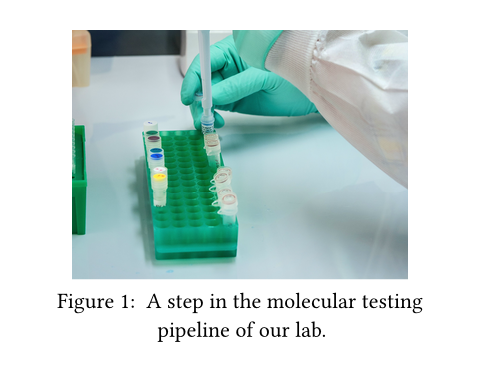

#figure(
image("molecular.jpg", width: 80%),
caption: [
A step in the molecular testing
pipeline of our lab.
],
)
ParameterParameterParameters are input values for functions. Specify them in parentheses after the function name.
source
Show example

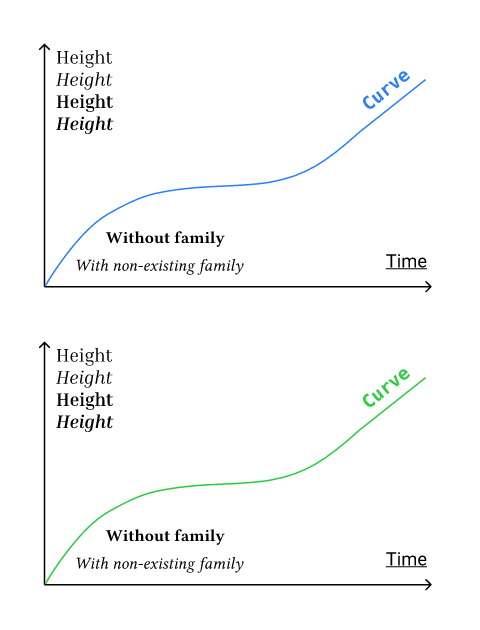

#let original = read("diagram.svg")
#let changed = original.replace(
"#2B80FF", // blue
green.to-hex(),
)
#image(bytes(original))
#image(bytes(changed))
formatSettableSettableSettable parameters can be set using the set rule, changing the default value used thereafter.
set rule, changing the default value used thereafter.The image's format.
By default, the format is detected automatically. Typically, you thus
only need to specify this when providing raw bytes as the
source (even then, Typst will try to figure out the
format automatically, but that's not always possible).
Supported formats are "png", "jpg", "gif", "svg",
"pdf", "webp" as well as raw pixel data.
Note that several restrictions apply when using PDF files as images:
- When exporting to PDF, any PDF image file used must have a version equal to or lower than the export target PDF version.
- PDF files as images are currently not supported when exporting with a specific PDF standard, like PDF/A-3 or PDF/UA-1. In these cases, you can instead use SVGs to embed vector images.
- The image file must not be password-protected.
- Tags in your PDF image will not be preserved. Instead, you must provide an alternative description to make the image accessible.
When providing raw pixel data as the source, you must specify a
dictionary with the following keys as the format:
encoding(str): The encoding of the pixel data. One of:"rgb8"(three 8-bit channels: red, green, blue)"rgba8"(four 8-bit channels: red, green, blue, alpha)"luma8"(one 8-bit channel)"lumaa8"(two 8-bit channels: luma and alpha)
width(int): The pixel width of the image.height(int): The pixel height of the image.
The pixel width multiplied by the height multiplied by the channel count
for the specified encoding must then match the source data.
Show example
#image(
read(
"tetrahedron.svg",
encoding: none,
),
format: "svg",
width: 2cm,
)
#image(
bytes(range(16).map(x => x * 16)),
format: (
encoding: "luma8",
width: 4,
height: 4,
),
width: 2cm,
)
Default value: auto
Available string values
pngRaster format for illustrations and transparent graphics.
jpgLossy raster format suitable for photos.
gifRaster format that is typically used for short animated clips. Typst can load GIFs, but they will become static.
webpRaster format that supports both lossy and lossless compression.
svgThe vector graphics format of the web.
pdfHigh-fidelity document and graphics format, with focus on exact reproduction in print.
width
The width of the image.
Default value: auto
height
The height of the image.
Default value: auto
alt
An alternative description of the image.
This text is used by Assistive Technology (AT) like screen readers to describe the image to users with visual impairments.
When the image is wrapped in a figure, use this parameter
rather than the figure's alt parameter to describe the
image. The only exception to this rule is when the image and the other
contents in the figure form a single semantic unit. In this case, use
the figure's alt parameter to describe the entire composition and do
not use this parameter.
You can learn how to write good alternative descriptions in the Accessibility Guide.
Default value: none
pageSettableSettableSettable parameters can be set using the set rule, changing the default value used thereafter.
set rule, changing the default value used thereafter.The page number that should be embedded as an image. This attribute only has an effect for PDF files.
Default value: 1
fitSettableSettableSettable parameters can be set using the set rule, changing the default value used thereafter.
set rule, changing the default value used thereafter.How the image should adjust itself to a given area (the area is defined
by the width and height fields). Note that fit doesn't visually
change anything if the area's aspect ratio is the same as the image's
one.
Show example
#set page(width: 300pt, height: 50pt, margin: 10pt)

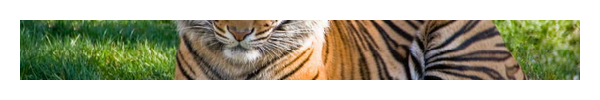

#image("tiger.jpg", width: 100%, fit: "cover")

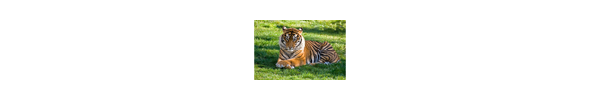

#image("tiger.jpg", width: 100%, fit: "contain")

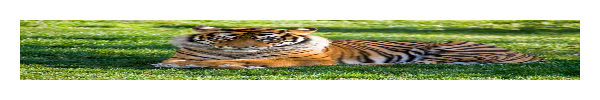

#image("tiger.jpg", width: 100%, fit: "stretch")
Default value: "cover"
Available string values
coverThe image should completely cover the area (preserves aspect ratio by cropping the image only horizontally or vertically). This is the default.
containThe image should be fully contained in the area (preserves aspect ratio; doesn't crop the image; one dimension can be narrower than specified).
stretchThe image should be stretched so that it exactly fills the area, even if this means that the image will be distorted (doesn't preserve aspect ratio and doesn't crop the image).
scaling
A hint to viewers how they should scale the image.
When set to auto, the default is left up to the viewer. For PNG
export, Typst will default to smooth scaling, like most PDF and SVG
viewers.
Note: The exact look may differ across PDF viewers.
Default value: auto
Available string values
smoothScale with a smoothing algorithm such as bilinear interpolation.
pixelatedScale with nearest neighbor or a similar algorithm to preserve the pixelated look of the image.
icc
An ICC profile for the image.
ICC profiles define how to interpret the colors in an image. When set
to auto, Typst will try to extract an ICC profile from the image.
Default value: auto
DefinitionDefinitionThese functions and types can have related definitions. To access a definition, specify the name of the function or type, followed by the definition name separated by a period.
decode
Decode a raster or vector graphic from bytes or a string.
data
The data to decode as an image. Can be a string for SVGs.
format
The image's format. Detected automatically by default.
Available string values
pngRaster format for illustrations and transparent graphics.
jpgLossy raster format suitable for photos.
gifRaster format that is typically used for short animated clips. Typst can load GIFs, but they will become static.
webpRaster format that supports both lossy and lossless compression.
svgThe vector graphics format of the web.
pdfHigh-fidelity document and graphics format, with focus on exact reproduction in print.
fit
How the image should adjust itself to a given area.
Available string values
coverThe image should completely cover the area (preserves aspect ratio by cropping the image only horizontally or vertically). This is the default.
containThe image should be fully contained in the area (preserves aspect ratio; doesn't crop the image; one dimension can be narrower than specified).
stretchThe image should be stretched so that it exactly fills the area, even if this means that the image will be distorted (doesn't preserve aspect ratio and doesn't crop the image).
