rectElementElementElement functions can be customized with set and show rules.
set and show rules.A rectangle with optional content.

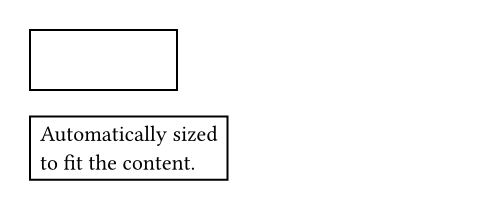

Example
// Without content.
#rect(width: 35%, height: 30pt)
// With content.
#rect[
Automatically sized \
to fit the content.
]
ParameterParameterParameters are input values for functions. Specify them in parentheses after the function name.
width
The rectangle's width, relative to its parent container.
Default value: auto
height
The rectangle's height, relative to its parent container.
Default value: auto
fill
How to fill the rectangle.
When setting a fill, the default stroke disappears. To create a rectangle with both fill and stroke, you have to configure both.
Default value: none
Show example

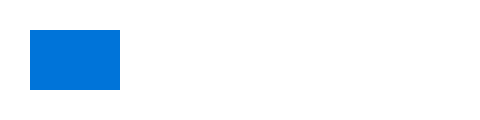

#rect(fill: blue)
stroke
How to stroke the rectangle. This can be:
-
noneto disable stroking -
autofor a stroke of1pt + blackif and only if no fill is given. -
Any kind of stroke
-
A dictionary describing the stroke for each side individually. The dictionary can contain the following keys in order of precedence:
top: The top stroke.right: The right stroke.bottom: The bottom stroke.left: The left stroke.x: The horizontal stroke.y: The vertical stroke.rest: The stroke on all sides except those for which the dictionary explicitly sets a size.
All keys are optional; omitted keys will use their previously set value, or the default stroke if never set.
Default value: auto
Show example

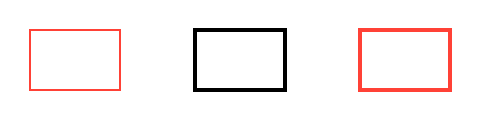

#stack(
dir: ltr,
spacing: 1fr,
rect(stroke: red),
rect(stroke: 2pt),
rect(stroke: 2pt + red),
)
radiusSettableSettableSettable parameters can be set using the set rule, changing the default value used thereafter.
set rule, changing the default value used thereafter.How much to round the rectangle's corners, relative to the minimum of the width and height divided by two. This can be:
-
A relative length for a uniform corner radius.
-
A dictionary: With a dictionary, the stroke for each side can be set individually. The dictionary can contain the following keys in order of precedence:
top-left: The top-left corner radius.top-right: The top-right corner radius.bottom-right: The bottom-right corner radius.bottom-left: The bottom-left corner radius.left: The top-left and bottom-left corner radii.top: The top-left and top-right corner radii.right: The top-right and bottom-right corner radii.bottom: The bottom-left and bottom-right corner radii.rest: The radii for all corners except those for which the dictionary explicitly sets a size.
Default value: (:)
Show example
#set rect(stroke: 4pt)
#rect(
radius: (
left: 5pt,
top-right: 20pt,
bottom-right: 10pt,
),
stroke: (
left: red,
top: yellow,
right: green,
bottom: blue,
),
)
insetSettableSettableSettable parameters can be set using the set rule, changing the default value used thereafter.
set rule, changing the default value used thereafter.How much to pad the rectangle's content. See the box's documentation for more details.
Default value: 0% + 5pt
outsetSettableSettableSettable parameters can be set using the set rule, changing the default value used thereafter.
set rule, changing the default value used thereafter.How much to expand the rectangle's size without affecting the layout. See the box's documentation for more details.
Default value: (:)
body
The content to place into the rectangle.
When this is omitted, the rectangle takes on a default size of at most
45pt by 30pt.
Default value: none
